[History Server] Poll Serve, placement group, and Ray Data endpoints by default by Future-Outlier · Pull Request #5093 · ray-project/kuberay

Future-Outlier · 2026-08-05T22:36:26Z

Why are these changes needed?

The History Server rebuilds the UI from Ray events, but Serve applications, placement groups, and Ray Data datasets are not in the event stream yet. The head collector now polls these endpoints by default so replayed clusters show them:

/api/serve/applications/
/api/v0/placement_groups?detail=1&limit=10000
/api/data/datasets/{job_id} (per job discovered via /api/jobs/)

You can set the interval with RAY_COLLECTOR_POLL_INTERVAL if you want (default 30s). RAY_COLLECTOR_ADDITIONAL_ENDPOINTS still adds more endpoints on top. Ray Train can follow once its frontend schema is settled.

Screenshots

Dead clusters replayed through the History Server, each endpoint with and without data.

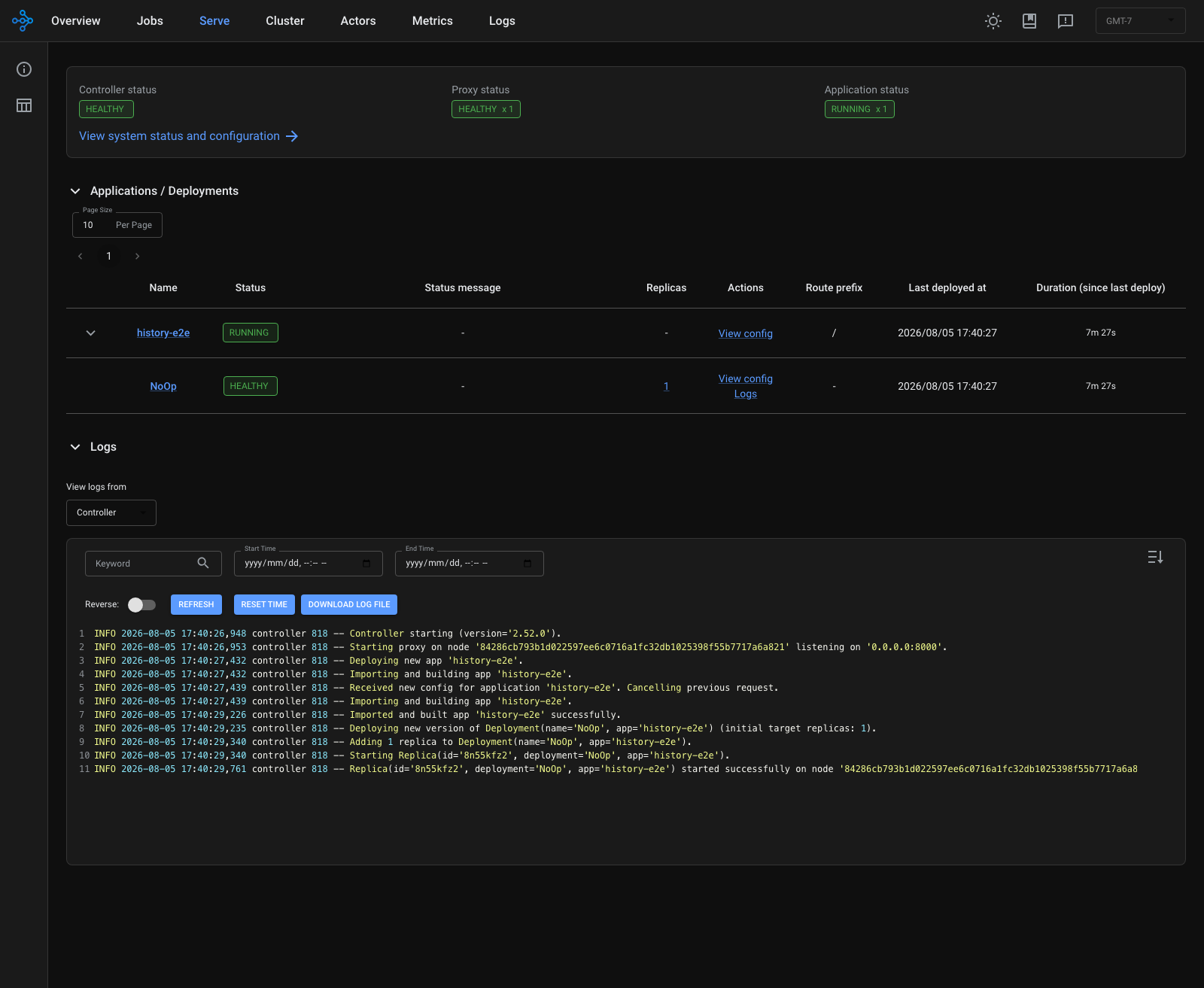

Serve applications:

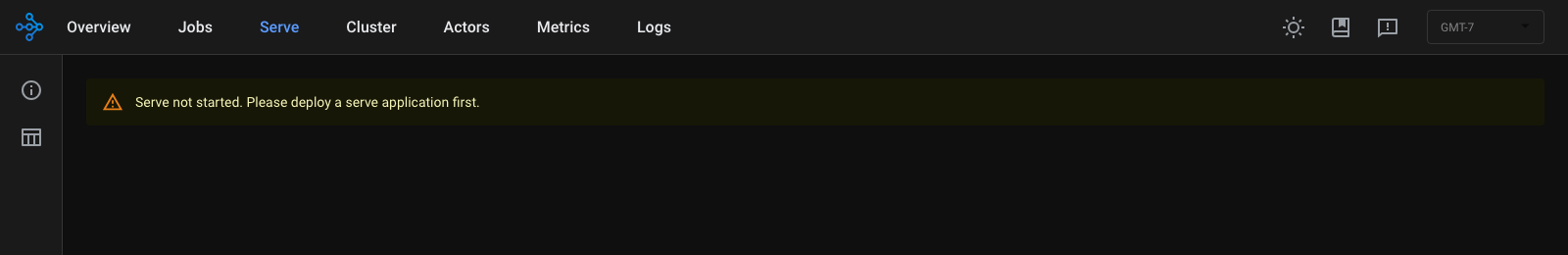

Serve applications, cluster that never ran Serve:

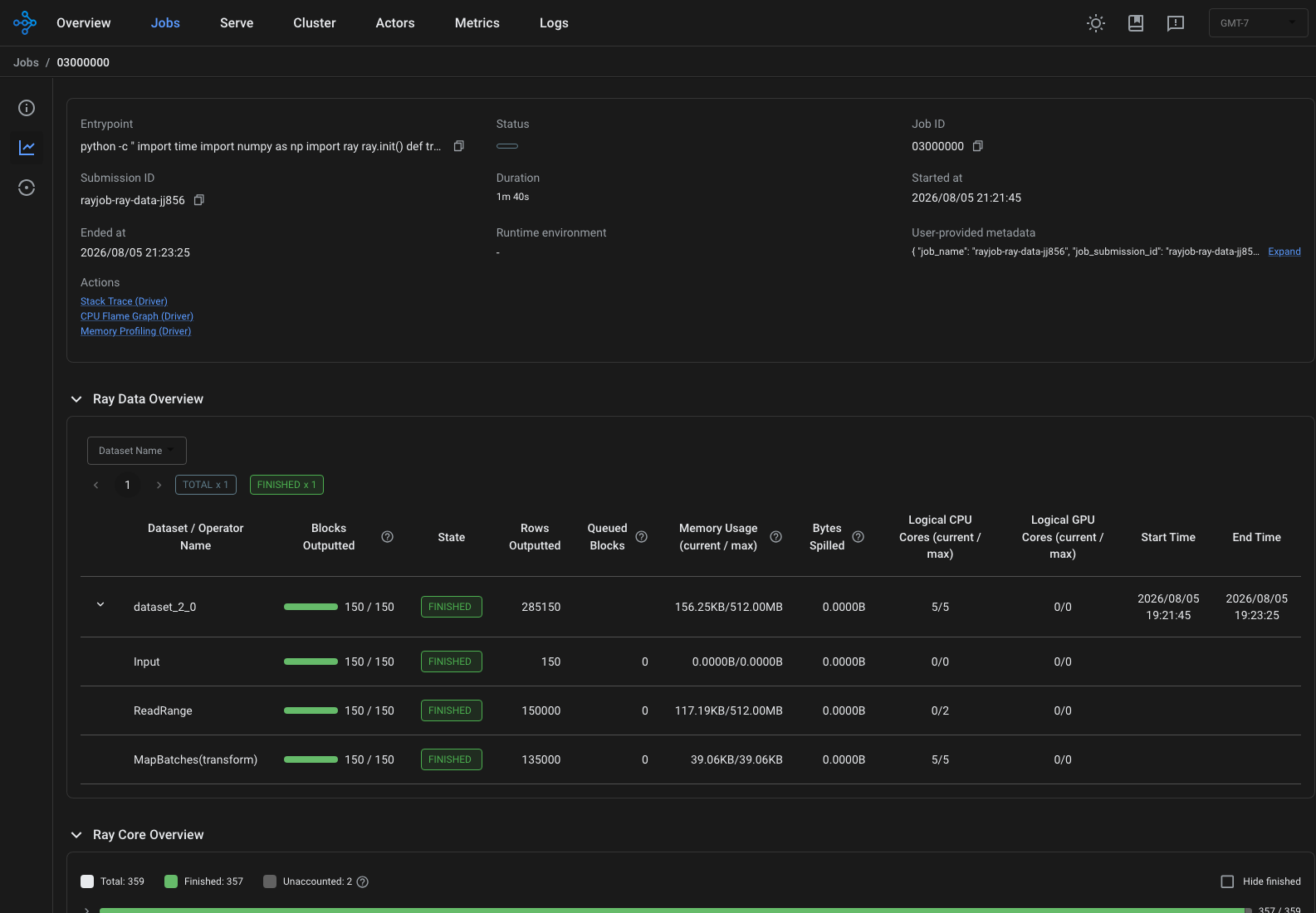

Ray Data datasets, row expanded into its operators:

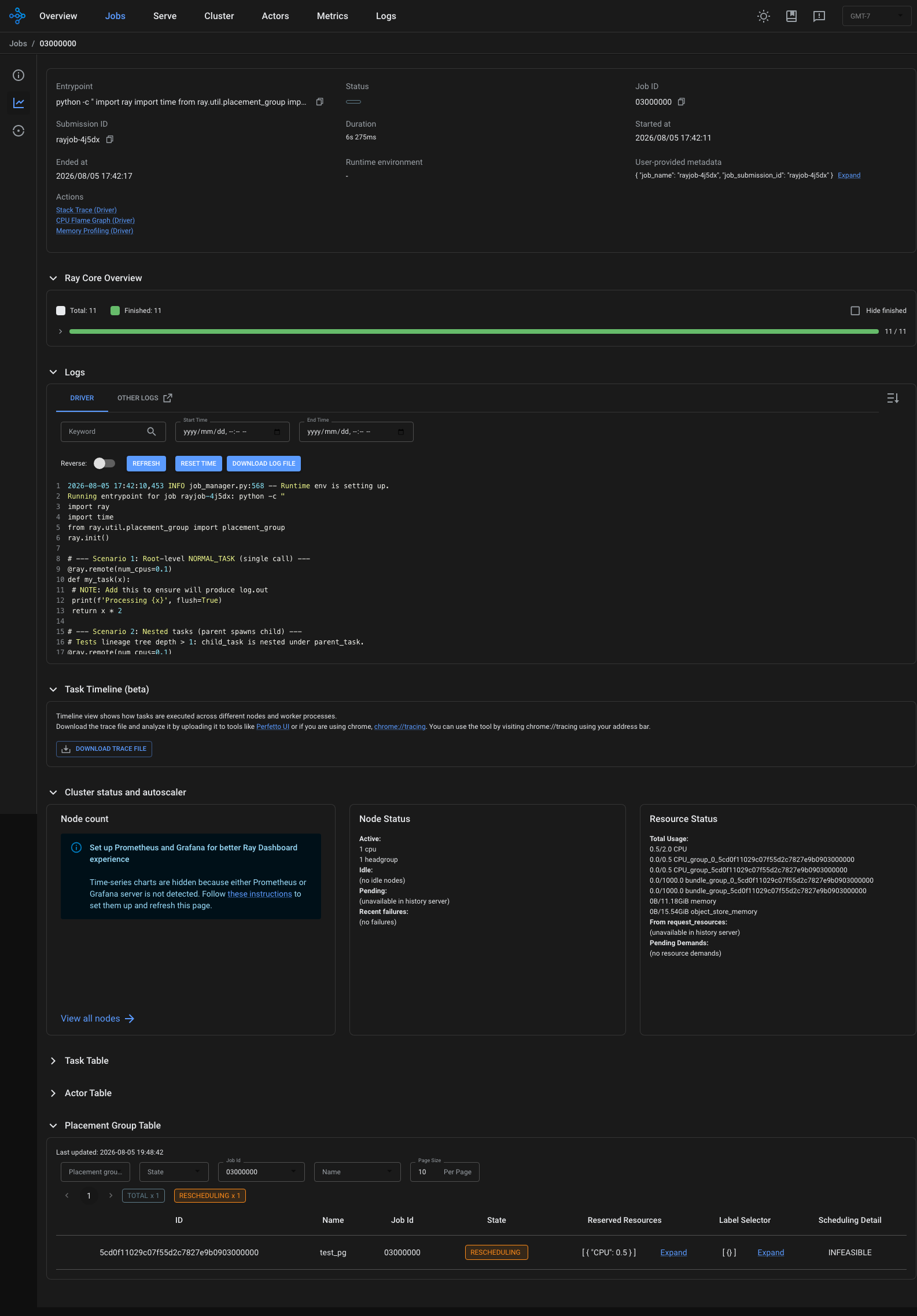

Placement groups; this job used no Ray Data, so no Ray Data Overview section:

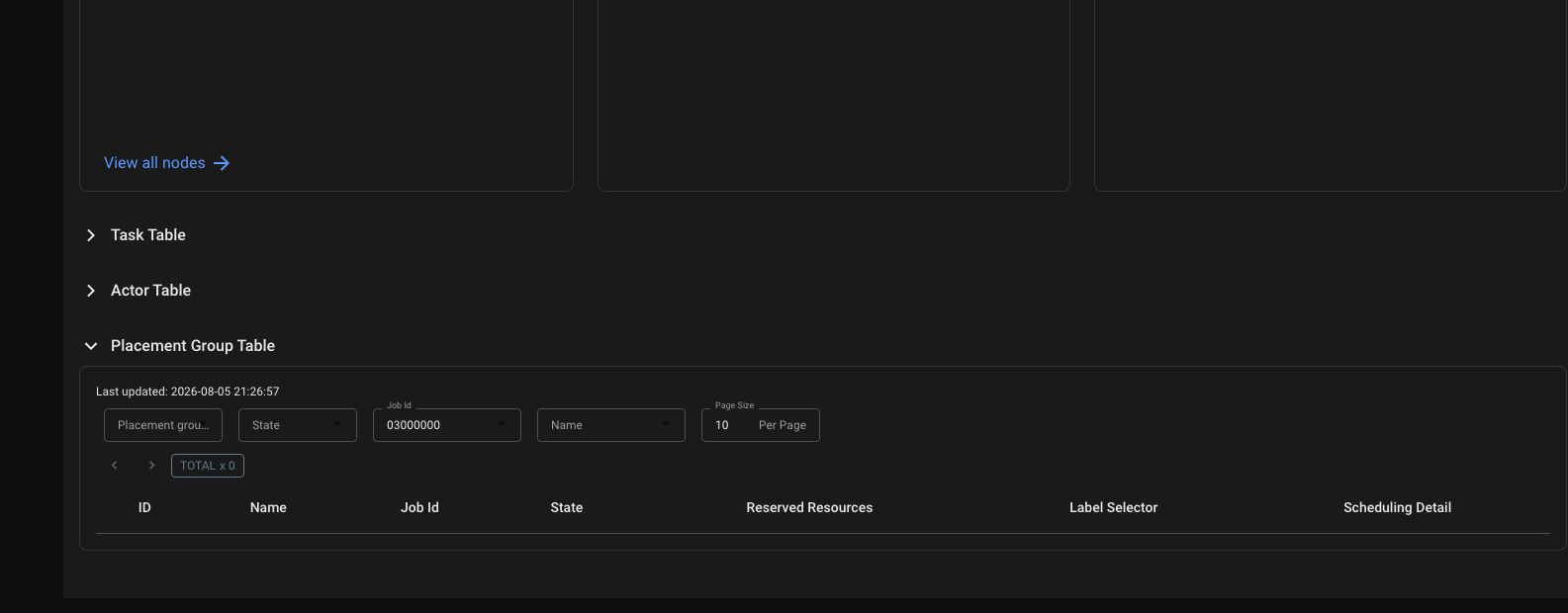

Placement groups, job that created none:

Related issue number

Labels

If this PR has user-facing changes that require documentation updates at release time, I have added the doc-updates-required label.
If this PR contains breaking changes, I have added the breaking-change label.

Checks

I've made sure the tests are passing.
Testing Strategy
- Unit tests
- Manual tests

Manual test instructions

Unit: cd historyserver && make test.
E2E on kind + MinIO: cd historyserver && go test -count=1 ./test/e2e/ -run 'TestCollector$' — 8/8 passing.
The Ray Data memory and CPU columns come from Prometheus queries in the dashboard, so they read 0 without a Prometheus server (on live clusters too); the screenshot was taken with one installed.

…by default The head collector now polls these endpoints itself every RAY_COLLECTOR_POLL_INTERVAL (default 30s); RAY_COLLECTOR_ADDITIONAL_ENDPOINTS still adds more on top.

RayServiceReconciler.Recorder is events.EventRecorder, so record.NewFakeRecorder does not compile. Every other test in this file already uses events.

cursor

Cursor Bugbot has reviewed your changes using default effort and found 1 potential issue.

^{Reviewed by Cursor Bugbot for commit 34e5a50. Configure here.}

A periodic poll now stores an empty Serve response since that is the live truth, while the final shutdown poll still cannot erase a converged snapshot. Periodic polling stops on the shutdown signal instead of ShutdownChan so no tick can overwrite the final pass.

Signed-off-by: Future-Outlier <eric901201@gmail.com>

- Cap the shutdown wait on the periodic poller so a stuck storage write cannot consume the termination grace period, and skip periodic writes once shutdown starts so the final poll owns the store. - Drop the placement-group replay from the collector suite: testDeadClusterPlacementGroups already covers the same round trip. - Kill and reap the e2e kubectl port-forward on cleanup: a leaked forward keeps the port and the next test silently talks to a deleted namespace. Signed-off-by: Future-Outlier <eric901201@gmail.com>

Future-Outlier · 2026-08-06T01:30:19Z

cc @win5923 @machichima to take a look, tks

machichima

Only went through part of the PR, will finish the review tomorrow!

machichima · 2026-08-06T12:05:24Z

+	// Fall back instead of exiting: crash-looping this sidecar would take the head pod
+	// out of its Service endpoints.


nit: maybe move this to line 114 above, as this is the behavior of all env var parsing logic

https://github.com/ray-project/kuberay/pull/5093/changes#diff-49caa92ffb620cd5fa29b0eaa2bd82362831df957085fc12520b1d4ec23f88adR114

Env parsing isn't all in one place — RAY_COLLECTOR_EVENT_* (131-155), ADDITIONAL_ENDPOINTS (166), STORAGE_BACKEND (197) and RAY_DASHBOARD_ADDRESS (235) all come after 113. The block ending at 113 is the core flags validateFlags consumes, while this one pairs with ADDITIONAL_ENDPOINTS (both endpoint-polling knobs, adjacent config fields).

Keeping it here, but happy to move all the trailing blocks in a separate cleanup if you prefer.

machichima · 2026-08-06T13:58:58Z

+// PollAdditionalEndpointsPeriodically fetches the built-in endpoints, plus anything from
+// RAY_COLLECTOR_ADDITIONAL_ENDPOINTS, on a timer; each cycle overwrites the previous one.
+// It stops on the shutdown signal, not ShutdownChan: ShutdownChan closes only after the
+// final shutdown poll, and a tick in between could overwrite that final snapshot.
+// Run joins this goroutine before that final poll, so the ctx cancels at stop to keep a
+// blocked resolve or in-flight cycle from stalling shutdown.


Suggested change

// PollAdditionalEndpointsPeriodically fetches the built-in endpoints, plus anything from

// RAY_COLLECTOR_ADDITIONAL_ENDPOINTS, on a timer; each cycle overwrites the previous one.

// It stops on the shutdown signal, not ShutdownChan: ShutdownChan closes only after the

// final shutdown poll, and a tick in between could overwrite that final snapshot.

// Run joins this goroutine before that final poll, so the ctx cancels at stop to keep a

// blocked resolve or in-flight cycle from stalling shutdown.

// PollAdditionalEndpointsPeriodically fetches the built-in endpoints, plus anything from

// RAY_COLLECTOR_ADDITIONAL_ENDPOINTS, on a timer; each cycle overwrites the previous one.

// It stops when stop closes and cancels any blocked resolve or in-flight request at that point.

Should we move the shutdown specific comment to the call site and just describe the function behavior here

Done in 17626bc — the shutdown rationale moved to the goroutine launch in collector.go.

machichima · 2026-08-06T14:07:01Z

+	logrus.Info("Finished processing polled endpoints")
+}
+
+// finalPoll marks the shutdown pass, where an empty Serve response is distrusted.


Suggested change

// finalPoll marks the shutdown pass, where an empty Serve response is distrusted.

// pollAllEndpoints fetches the polled endpoints plus per-job dataset endpoints and stores

// their responses, stopping early once ctx is canceled.

// finalPoll marks the shutdown pass, which distrusts empty Serve responses (see isEmptyPayload).

update docstring to describe what this function is doing

Done in 17626bc, applied as suggested.

machichima · 2026-08-06T14:11:31Z

+func (r *RayLogHandler) polledEndpoints() []string {
+	endpoints := make([]string, 0, len(staticPolledEndpoints)+len(r.AdditionalEndpoints))
+	seen := make(map[string]struct{}, cap(endpoints))
+	for _, list := range [][]string{staticPolledEndpoints, r.AdditionalEndpoints} {


Could we use slices.Concat, which merge the two into a slice, then we can simplify this to a single loop

Done in 17626bc — slices.Concat plus a single dedup loop.

…ndpoints

- Match the sibling env blocks when parsing RAY_COLLECTOR_POLL_INTERVAL. - Merge the built-in and configured endpoints with slices.Concat. - Describe what PollAdditionalEndpointsPeriodically and pollAllEndpoints do, and keep the shutdown-ordering rationale at the call site. Signed-off-by: Future-Outlier <eric901201@gmail.com>

Signed-off-by: Future-Outlier <eric901201@gmail.com>

machichima

Overall LGTM, just few comments

machichima · 2026-08-07T04:40:25Z

+	}
+
+	storageKey := utils.EndpointPathToStorageKey(endpoint)
+	objectKey := path.Join(r.ClusterDir, sessionName, utils.RAY_SESSIONDIR_FETCHED_ENDPOINTS_NAME, storageKey)


nit: could be in follow-up. Could we add a new function in historyserver/pkg/storage/clusterlogs/clusterlogs.go like following?

func FetchedEndpointsDir(prefix, sessionName string) string { return path.Join(prefix, sessionName, utils.RAY_SESSIONDIR_FETCHED_ENDPOINTS_NAME) }

machichima · 2026-08-07T05:06:48Z

+	defer cancel()
+
+	// Fresh state, so this final pass re-captures every job.
+	r.pollAllEndpoints(ctx, sessionName, newDatasetPollState(), true)


We use a fresh state here, which will also re-capture terminal jobs that are already marked as done. Is this intended? With many jobs this could burn through the whole shutdownPollBudget (10s) on jobs that don't need re-fetching.

machichima · 2026-08-07T05:12:43Z

+              value: "TASK_DEFINITION_EVENT,TASK_LIFECYCLE_EVENT,ACTOR_TASK_DEFINITION_EVENT,
+                      TASK_PROFILE_EVENT,DRIVER_JOB_DEFINITION_EVENT,DRIVER_JOB_LIFECYCLE_EVENT,
+                      ACTOR_DEFINITION_EVENT,ACTOR_LIFECYCLE_EVENT,NODE_DEFINITION_EVENT,NODE_LIFECYCLE_EVENT"


Let's update the ray image version to 2.56.0 and use "ALL" here

machichima · 2026-08-07T05:15:27Z

+            - name: FQ_RAY_IP
+              value: "localhost"
+            - name: RAY_TMP_ROOT
+              value: *rayTmpRoot


Do we also want to set RAY_COLLECTOR_POLL_INTERVAL to 5 sec here so test historyserver/test/support/rayservice.go can end quicker?

win5923 · 2026-08-07T07:46:13Z

+          # Optional extras on top of the built-in endpoints (Serve, placement groups, Ray Data).
+          # Paths must match the frontend request URI, query string included.
+          # - name: RAY_COLLECTOR_ADDITIONAL_ENDPOINTS
+          #   value: "/nodes?view=summary"


I'm curious why the sample value is /nodes?view=summary. Only endpoints under /api/** that don't have dedicated handlers can be replayed.

kuberay/historyserver/pkg/historyserver/router.go

Line 120 in 7f67392

ws.Path("/api").Consumes(restful.MIME_JSON).Produces(restful.MIME_JSON).Filter(RequestLogFilter) //.Filter(s.loginWrapper)

win5923 · 2026-08-07T07:48:27Z

+		case pollFailed:
+			// Retried next cycle.
+		}
+	}


Should we have a retry limit?

win5923 · 2026-08-07T08:00:08Z

+	r.processSessionLatestLogs()
+	wg.Wait()
+
+	// Only now: pollSingleEndpoint uses ShutdownChan to cancel in-flight requests.


Suggested change

// Only now: pollSingleEndpoint uses ShutdownChan to cancel in-flight requests.

// Close after all writers have finished.

I think we can update the comment, since ShutdownChan is no longer used to cancel in-flight requests. At this point, all writers have already finished before it's closed.

win5923 · 2026-08-07T08:06:12Z

-// the response to storage.
-func (r *RayLogHandler) pollSingleEndpoint(endpoint, sessionName string) {
+// fetchEndpoint GETs one dashboard endpoint; in-flight requests are canceled on shutdown.
+func (r *RayLogHandler) fetchEndpoint(parent context.Context, endpoint string) ([]byte, error) {


I think we can simplify this by relying on the request context directly:

func (r *RayLogHandler) fetchEndpoint(parent context.Context, endpoint string) ([]byte, error) { ctx, cancel := context.WithTimeout(parent, defaultRequestTimeout) defer cancel() req, err := http.NewRequestWithContext(ctx, http.MethodGet, r.DashboardAddress+endpoint, nil) ...

Since parent (pollSingleEndpoint, pollDataDatasets) is already canceled during shutdown, ctx.Done() will be triggered before ShutdownChan is closed, so the extra goroutine waiting on ShutdownChan doesn't seem necessary.

Future-Outlier added 2 commits August 5, 2026 17:30

[History Server] Poll Serve, placement group, and Ray Data endpoints …

54251e8

…by default The head collector now polls these endpoints itself every RAY_COLLECTOR_POLL_INTERVAL (default 30s); RAY_COLLECTOR_ADDITIONAL_ENDPOINTS still adds more on top.

[Fix] Use events.NewFakeRecorder in rayservice suspend unit test

34e5a50

RayServiceReconciler.Recorder is events.EventRecorder, so record.NewFakeRecorder does not compile. Every other test in this file already uses events.

Future-Outlier requested review from MortalHappiness, andrewsykim, kevin85421 and rueian as code owners August 5, 2026 22:36

cursor Bot reviewed Aug 5, 2026

View reviewed changes

Comment thread historyserver/pkg/collector/logcollector/runtime/logcollector/collector.go Outdated

Future-Outlier added 3 commits August 5, 2026 17:59

update

df8f4bf

Signed-off-by: Future-Outlier <eric901201@gmail.com>

upd

16f6b8a

Signed-off-by: Future-Outlier <eric901201@gmail.com>

Future-Outlier marked this pull request as draft August 6, 2026 00:32

Future-Outlier marked this pull request as ready for review August 6, 2026 01:25

machichima reviewed Aug 6, 2026

View reviewed changes

Future-Outlier added 2 commits August 6, 2026 12:08

Merge remote-tracking branch 'origin/master' into collector-builtin-e…

010acca

…ndpoints

Future-Outlier force-pushed the collector-builtin-endpoints branch from 0805dee to 17626bc Compare August 6, 2026 17:41

Trigger CI

697ed1c

Signed-off-by: Future-Outlier <eric901201@gmail.com>

machichima reviewed Aug 7, 2026

View reviewed changes

win5923 reviewed Aug 7, 2026

View reviewed changes

		// Fall back instead of exiting: crash-looping this sidecar would take the head pod
		// out of its Service endpoints.

-// finalPoll marks the shutdown pass, where an empty Serve response is distrusted.
+// pollAllEndpoints fetches the polled endpoints plus per-job dataset endpoints and stores
+// their responses, stopping early once ctx is canceled.
+// finalPoll marks the shutdown pass, which distrusts empty Serve responses (see isEmptyPayload).

	// Only now: pollSingleEndpoint uses ShutdownChan to cancel in-flight requests.
	// Close after all writers have finished.
