rpsump

Residential appliance automation with the Raspberry Pi.

Overview

This particular sump pump was designed to prevent lawn damage due to moisture output from residential heaters and A/C units. The water from the appliances is routed to the sump where the Pi monitors the water level sensors and operates the pump when needed.

Later stages of this application will output the reclaimed water to a reservoir where it will be used for gardening; the Pi will also control the watering schedule.

Requirements

SQlite >= 3.35: sudo apt-get install libsqlite3-dev

OpenSSL: sudo apt install libssl-dev

Components

Board

This struct collects the hardware interfaces and is intended to be a singleton for the lifetime of the program. Other threads can read the state of inputs or change outputs via synchronous access (Mutex).

Input pins

Are configured with a callback that triggers when the state changes between high and low. These callbacks send messages that aggregate in the consumer of an mpsc channel for processing.

Output pins

Controlled by the mpsc consumer, the state of output pins is computed.

Sump

Group of inputs/callback handlers and outputs that form the sump pump functionality.

Precipitation-aware garden schedules

When the weather feature is enabled, the garden scheduler will skip a scheduled run if it has rained recently, is currently raining, or is forecast to rain soon. Schedules can opt out individually (e.g. for covered or indoor zones) by setting skip_on_rain = false on the schedule (the default for new schedules is true). When a run is skipped, a GardenEvent row is written with status skipped instead of queued, so the event history reflects why nothing ran.

How the skip decision works

For every scheduler tick, the system fetches an hourly precipitation reading from Open-Meteo (past_hours of observations plus forecast_hours of forecast in one request) and builds a snapshot:

• past_mm — total observed precipitation over the last past_hours hours
• current_mm — precipitation for the in-progress hour (used as an actively-raining sensor)
• forecast_mm — total forecast precipitation over the next forecast_hours hours after the current hour

A schedule's run is skipped when:

1. The snapshot is available, and the schedule has skip_on_rain = true, and
2. either current_mm >= active_rain_mm (it's actively raining)
3. or past_mm + forecast_weight * forecast_mm >= threshold_mm

The forecast is intentionally discounted by forecast_weight (default 0.5) since observations are more reliable than predictions. If the Open-Meteo request fails or the feature is disabled, the snapshot is marked unavailable and no schedules are skipped — better to over-water than to dry out a bed because an API was down.

Config knobs

Knob	Default	Meaning
WEATHER_ENABLED	false	Master switch; when off, nothing is ever skipped
WEATHER_LATITUDE / WEATHER_LONGITUDE	—	Location used for the Open-Meteo query
WEATHER_PAST_HOURS	24	Hours of observed precipitation to total
WEATHER_FORECAST_HOURS	12	Hours of forecast to total (after the current hour)
WEATHER_THRESHOLD_MM	5.0	Composite skip threshold for past + weighted forecast
WEATHER_FORECAST_WEIGHT	0.5	Discount applied to forecast vs. observed
WEATHER_ACTIVE_RAIN_MM	0.3	Current-hour mm above which "it is raining now"
WEATHER_CACHE_TTL_SECS	900	How long to reuse a snapshot between scheduler ticks

skip_on_rain is a per-schedule boolean column on garden_schedule (defaults to true for new schedules), so multi-zone gardens can mix uncovered beds with rain-immune zones.

Garden HTTP API

All routes require a bearer token from POST /auth/login.

Route	Purpose
GET /garden/status	Solenoid state, current event, next scheduled run, rolling 24h/3d/7d watering totals, 48h rain-skip count, and max_runtime_secs (the bound a client should put on its duration controls)
POST /garden/run	Queues a one-off run and wakes the scheduler so it starts immediately. 409 if a run is already queued or in progress; 400 if duration_secs exceeds GARDEN_MAX_RUNTIME_SEC
POST /garden/stop	Cancels the running event and anything queued behind it; returns cancelled_event_ids
GET /garden/event	Run history. Filters: source, status, from, to (ISO-8601, inclusive, applied to scheduled_for), limit, offset
GET /garden/report?days=14	Daily watered-minutes buckets, scheduled vs. manual totals, per-schedule breakdown, run-outcome counts and a rain-skip summary. days is clamped to 1–90
GET/POST /garden/schedule, GET/PATCH/DELETE /garden/schedule/{id}	Schedule CRUD. PATCH is held to the same validation as POST

Every event row carries schedule_name as of the moment it was queued, so run history stays readable after a schedule is renamed or deleted (deleting one nulls the schedule_id FK but leaves the name behind).

Timestamps are naive UTC throughout, including schedule start_times — a schedule set to 06:00 runs at 06:00 UTC.

CORS

Browsers are only allowed to call the API from an origin listed in SERVER_ALLOWED_ORIGINS (comma-separated), plus localhost, 127.0.0.1 and [::1] when SERVER_ALLOW_LOCALHOST_CORS=true. With neither set, no cross-origin request is permitted.

Hardware

Raspberry Pi

• RPi 3 Model B

• 12v Relay

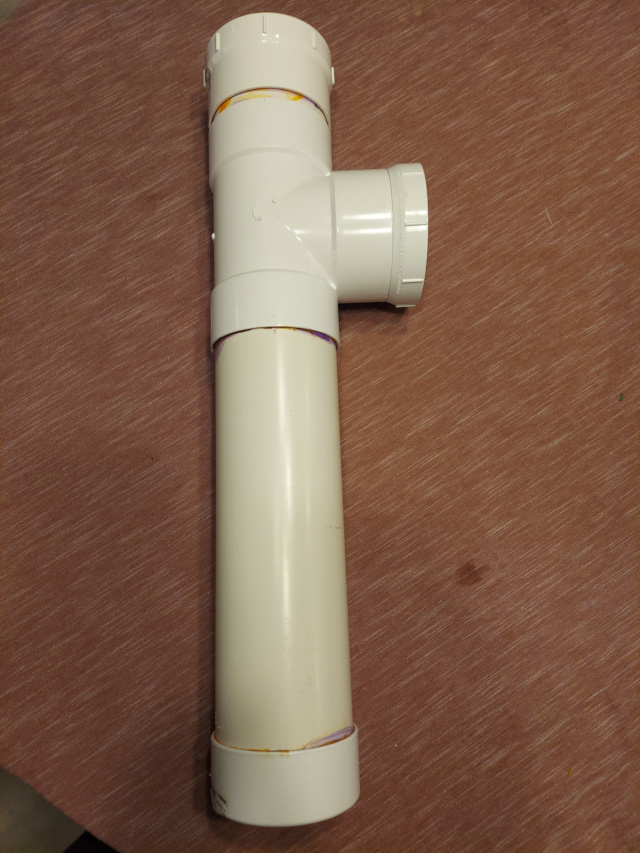

Pump Reservoir

• 4in. sewer pipe assembly from retail home improvement store
• standard pvc cement

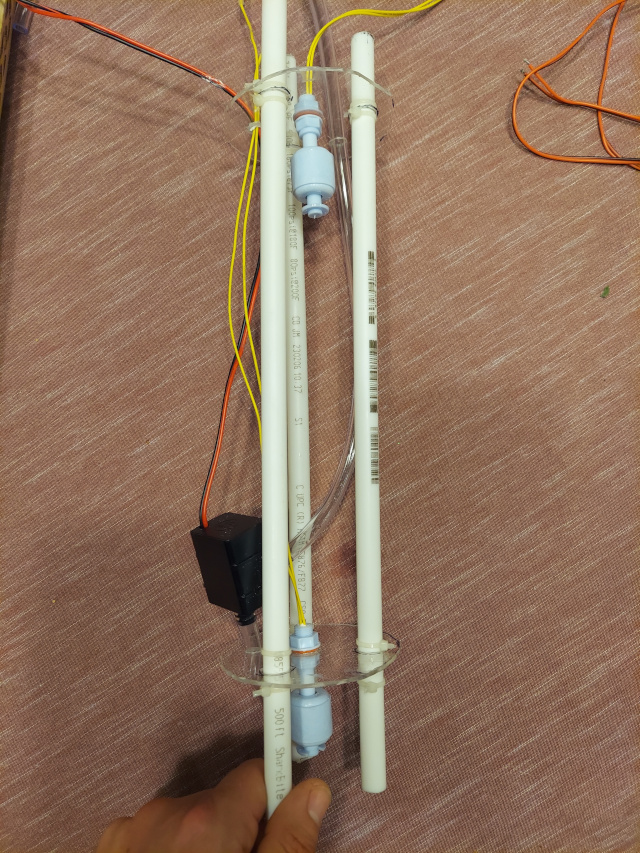

Sensor and pump assembly

• 5v float switches
• aquarium pump
• flexible pvc
• hobby-grade acrylic sheet
• zip ties
